13X APG Zeolite Molecular Sieve Adsorbent Drying Use In Air Compressor System Removal of H2O Mercaptans Sulphur Compounds

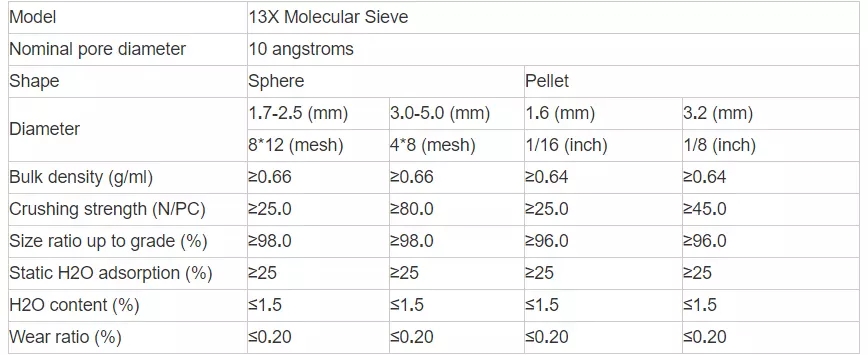

Model	13X Molecular Sieve
Nominal pore diameter	10 angstroms
Shape	Sphere		Pellet
Bulk density (g/ml)	≥0.66	≥0.66	≥0.64	≥0.64
Crushing strength (N/PC)	≥25.0	≥80.0	≥25.0	≥45.0
Size ratio up to grade (%)	≥98.0	≥98.0	≥96.0	≥96.0
Static H2O adsorption (%)	≥25	≥25	≥25	≥25
H2O content (%)	≤1.5	≤1.5	≤1.5	≤1.5
Wear ratio (%)	≤0.20	≤0.20	≤0.20	≤0.20

Inquire Now Next Product

PRODUCTS DESCRIPTION

Product description:

13X Zeolite In Air Compressor is made from zeolite powder 13X (>70%) and binder. Molecular sieve 13X is can adsorb aromatics and branched-chain hydrocarbons. Molecular sieve 13X is commonly used in removal of mercaptans, removal of CO2 in cryogenic air separation, etc.

More Details:

Synonym: Zeolite 13X, Molsive 13X, 13X molecular sieve, 13X APG

Typical Chemical Formula: Na86[(AlO2)86(SiO2)106].nH2O

CAS NO.: 1318-02-1

Silica-alumina ratio: SiO2/ Al2O3≈2.4

13X Zeolite Molecular Sieve Drying Use In Air Compressor System Removal of H2O Mercaptans Sulphur Compounds

13X Zeolite Molecular Sieve Adsorbent Application:

1. Molecular sieve 13X is used in removal of CO2 and moisture from air (air pre-purification) and other gases

2. Molecular sieve 13X is used in separation of enriched oxygen from air

3. Molecular sieve 13X is used in removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams such as LPG, butane, propane etc

4. Molecular sieve 13X is used in removal of n-chained compositions from aromatics

13X Zeolite Molecular Sieve Drying Use In Air Compressor System Removal of H2O Mercaptans Sulphur Compounds

13X Molecular Sieve Adsorbent Storage:

Keep 13X Molecular Sieve in an air tight container until ready for use to avoid unintended moisture adsorption.

Regeneration&Activation:

Molecular sieve 13X can be regenerated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a 13X molecular sieve, a temperature of 200-230℃ (390-570°F) is required. Molecular sieve 13X can also be regnerated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated molecular sieve can give moisture dew points below -100℃. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.

Packing

140 kg/drum, 25kg/carton, supersack

"Note：This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
