Molecular Sieve
Home > Products > Molecular Sieve > 3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve LIX Zeolite 13X Lithium Molecular Sieve For Oxygen Concentrator

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve LIX Zeolite 13X Lithium Molecular Sieve For Oxygen Concentrator

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.


PRODUCTS DESCRIPTION

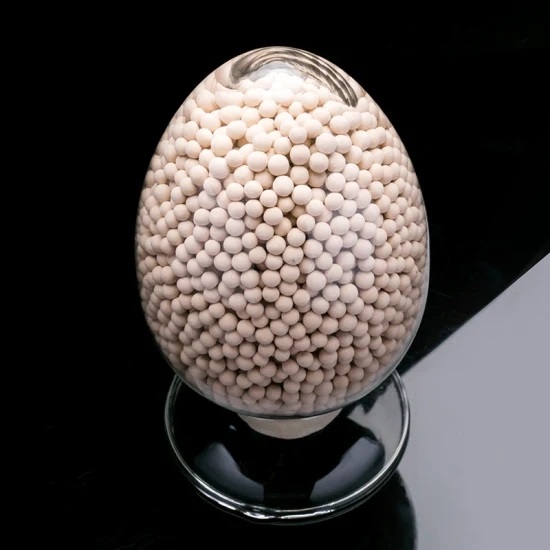

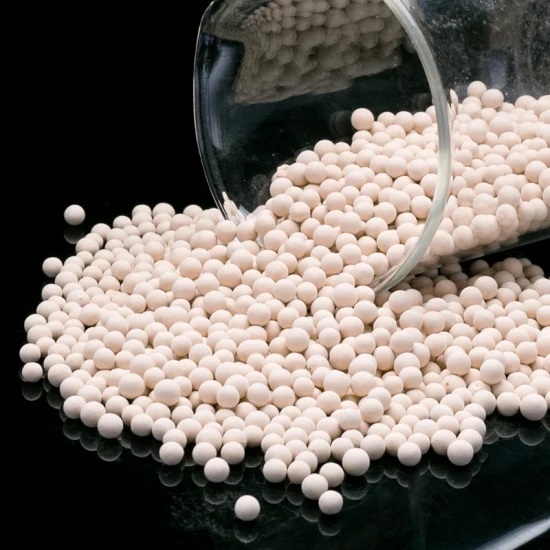

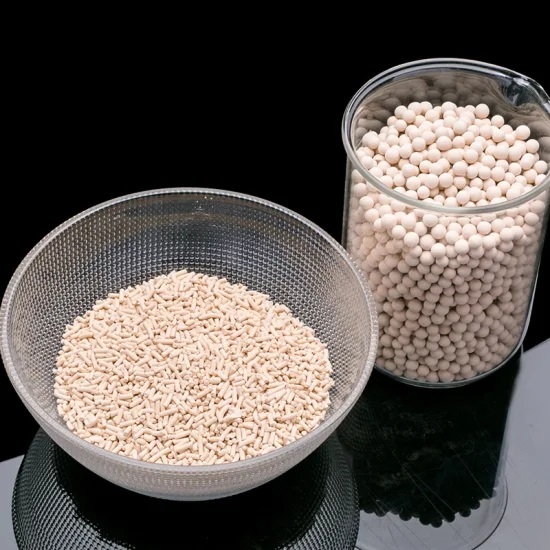

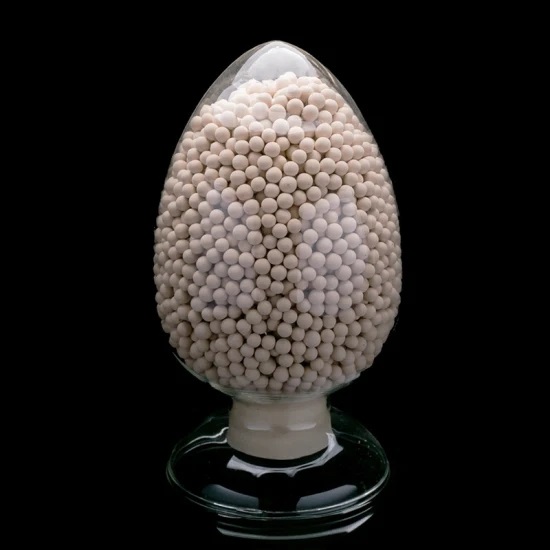

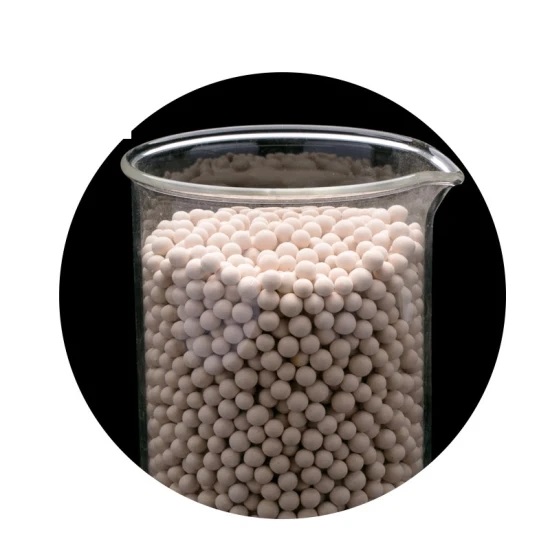

Lithium molecular sieve

Lithium molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high
efficiency of oxygen/nitrogen separation. Below chart indicates lithium based molecular sieve((The temperature is 25℃)) It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.

item

value

Classification

Chemical Auxiliary Agent

CAS No.

1318-02-1

Model Number

FEIZHOU-LiLSX

Name

Lithium molecular sieve

color

light gray

Nominal pore diameter

10 angstroms

Shape

Sphere Air Dryer Desiccant

Diameter(mm)

0.4-0.8mm

0.8-1.3mm

Bulk density

0.6g/ml

0.63g/ml

Loss on Ignition(wt%.575.C,1hr)

≤1.0

≤1.0

Crushing Strength(N)

≥5/piece

≥12/piece

Static N2 Capacity(wt%RH60%,25C)

≥22

≥22

Attrition(wt%)

≤0.2

≤0.2

Particle Ration(%)

≥95

≥97

Water content(%)

≤0.2

≤0.2

N2/O2Selectivity(a)

≥6.2

≥6.2

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve LIX Zeolite 13X Lithium Molecular Sieve For Oxygen Concentrator


Typical Application: Be mainly used in the PSA O2 unit, the O2 and N2 separation, the production of industrial and medical oxygen rich.


The chart indicates: FEIZHOU Lithium based molecular sieve(The temperature is 25℃). It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen. The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.

3-10L Medical Oxygen 95-98% Purity Li Molecular Sieve LIX Zeolite 13X Lithium Molecular Sieve For Oxygen Concentrator

Hand & Storage Recommendation:

It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.


"Note:This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
