5A molecular sieve adsorbent for hydrogen extraction is a kind of spherical or strip CaA adsorbent with microporous structure.
Adsorbent Porosity 5A Molecular Sieve for Hydrogen Purification 5A molecular sieves have high adsorption and fast adsorption speed, and are especially suitable for pressure swing adsorption. They can be used for various pressure swing adsorption devices such as oxygen, hydrogen, and carbon dioxide.
PRODUCT INTRODUCTION
Adsorbent Porosity 5A Molecular Sieve for Hydrogen Purification has a pore size of 5A and can adsorb any molecule with a pore size smaller than 5A. It is generally called a calcium molecular sieve. It has the functions of 3A molecular sieve and 4A molecular sieve. 5A molecular sieves have high adsorption and fast adsorption speed, and are especially suitable for pressure swing adsorption. They can be used for various pressure swing adsorption devices such as oxygen, hydrogen, and carbon dioxide. Adsorbent Porosity 5A Molecular Sieve for Hydrogen Purification can also adsorb C3-C4 n-alkanes, ethyl chloride, bromoethane, butanol, etc. This is a height that 4A molecular sieves cannot reach.
Adsorbent Porosity 5A Molecular Sieve for Hydrogen Purification can absorb up to 22% of their body weight. Its adsorption principle is similar to that of chromatography, except that the molecular composition of the substance is not changed.
PRODUCTS DESCRIPTION
FEIZHOU 5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).
It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.
It has high select adsorption and fast adsorption speed.
Chemical Molecular Formula: 0.7CaO·0.3Na2O·Al2O3·2SiO2·4.5H2O. (SiO2 : Al2O3 ≈2).
Technical Parameter:
Model | 5A Molecular Sieve | |||
Nominal pore diameter | 5 angstroms | |||
Shape | Sphere | Pellet | ||
Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
Bulk density (g/ml) | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 |
Crushing strength (N/PC) | ≥30.0 | ≥70.0 | ≥30.0 | ≥50.0 |
Size ratio up to grade (%) | ≥96.0 | ≥96.0 | ≥96.0 | ≥94.0 |
Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥20.5 | ≥20.5 |
Static Hexane adsorption (%) | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 |
H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |

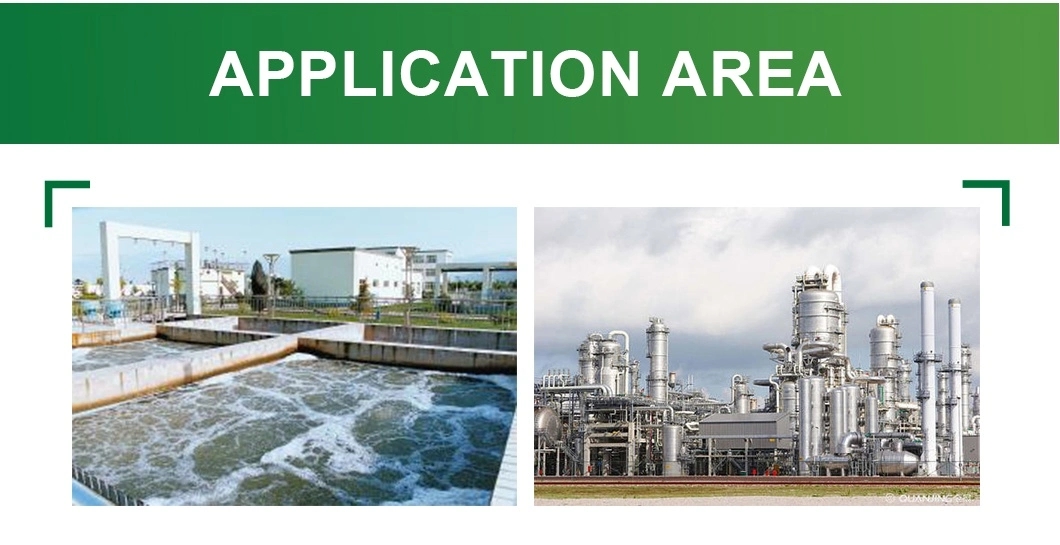

Typical Application:
a) The various sizes of O2, H2, CO2 and other gas PSA purification devices.
b) Separation of normal paraffin and isoparaffin.
c) The purification of air, dehydration and carbon dioxide removal.
d) The drying of natural gas, dehydration and desulphurization.
Warranty:
By National Standard GB/T 13550-2015.
Free consultation during the warranty period.
**The above information is for customers’ reference only. Performance characteristics vary depending on specific application. please contact us by email at info@fznewmaterials.com if detailed application method for materials needed.
