93-96% O2 Concentration Lithium For Medical Oxygen Generator Lilsx Zeolite Based Molecular Sieve

Item No.	UNIT
Product name	Type	Standard level
Diameter	20-50mesh	(0.4-0.8mm)
N2 Absorption Capacity	(ml/g)	≥22.00
N2/O2 Selectivity		≥6.2
Bulk Density	(g/ml)	0.63±0.03
Equilibrium Water Capacity	%	≤20
Crushing Strength	(N/pc)	≥10
LOI	(%)	≤1.0

Inquire Now Next Product

PRODUCTS DESCRIPTION

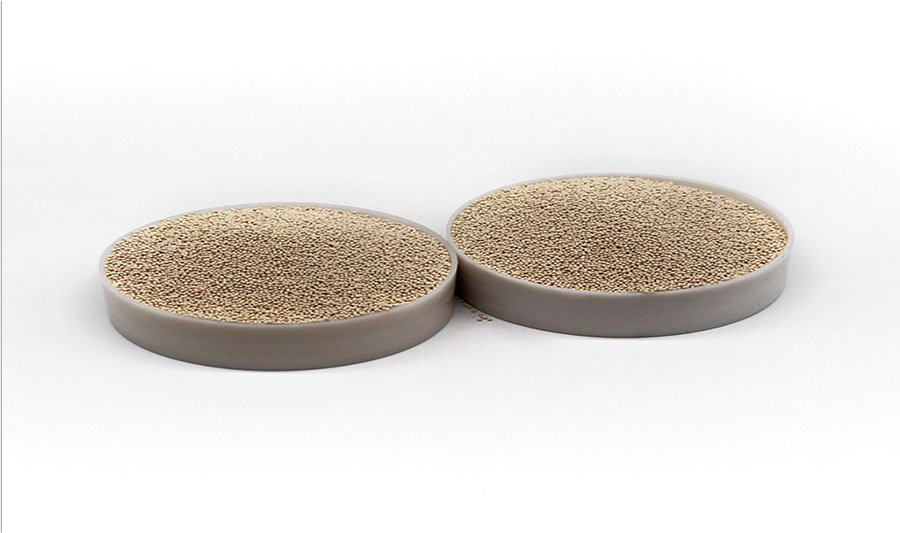

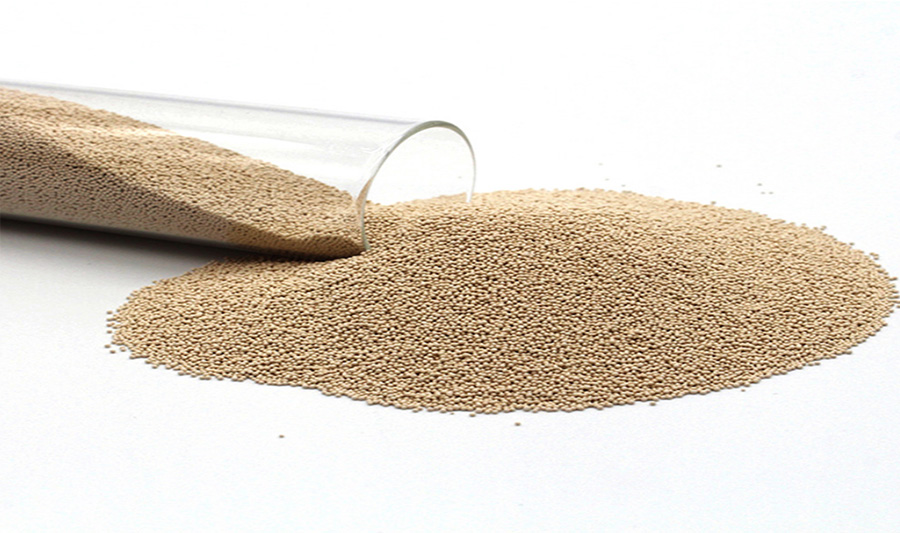

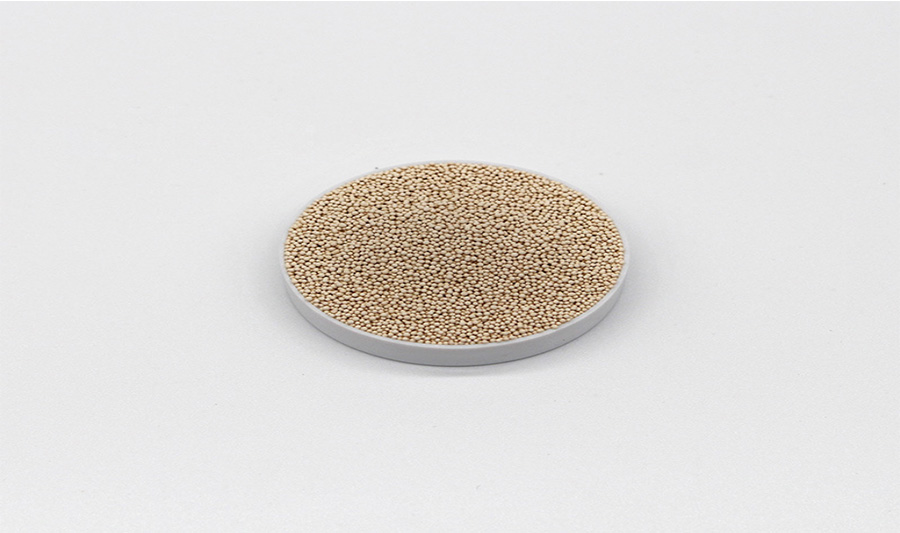

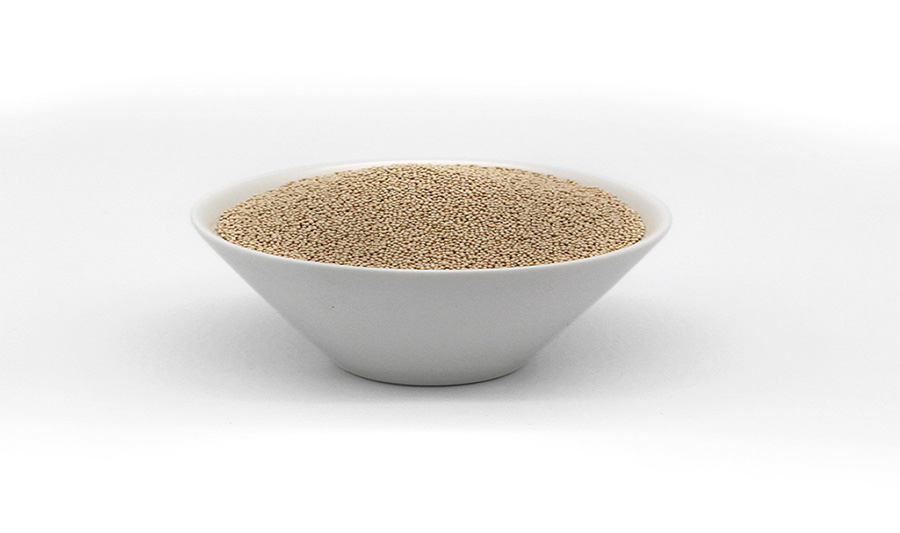

Lilsx Molecular Sieve Description:

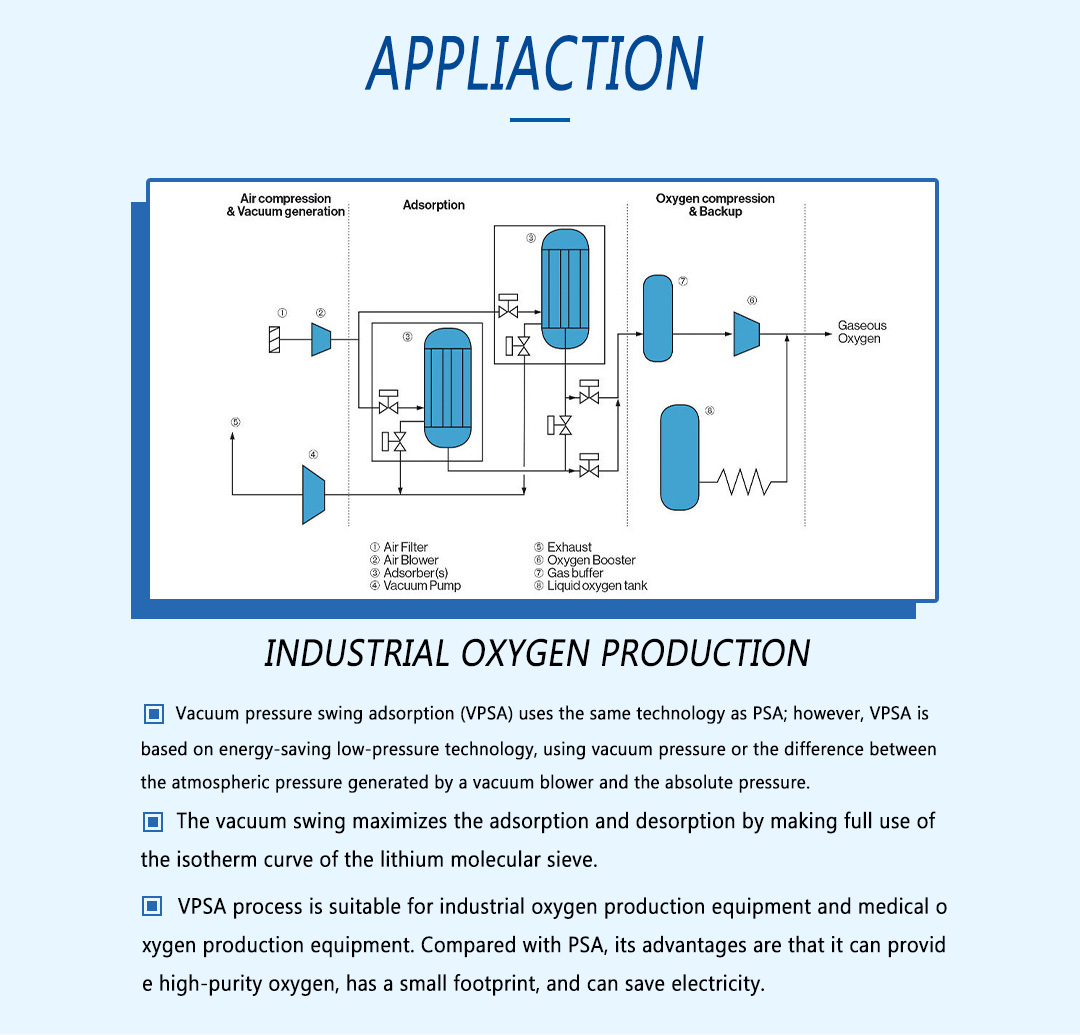

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.

Lithium ZeoliteTechnical Parameter:

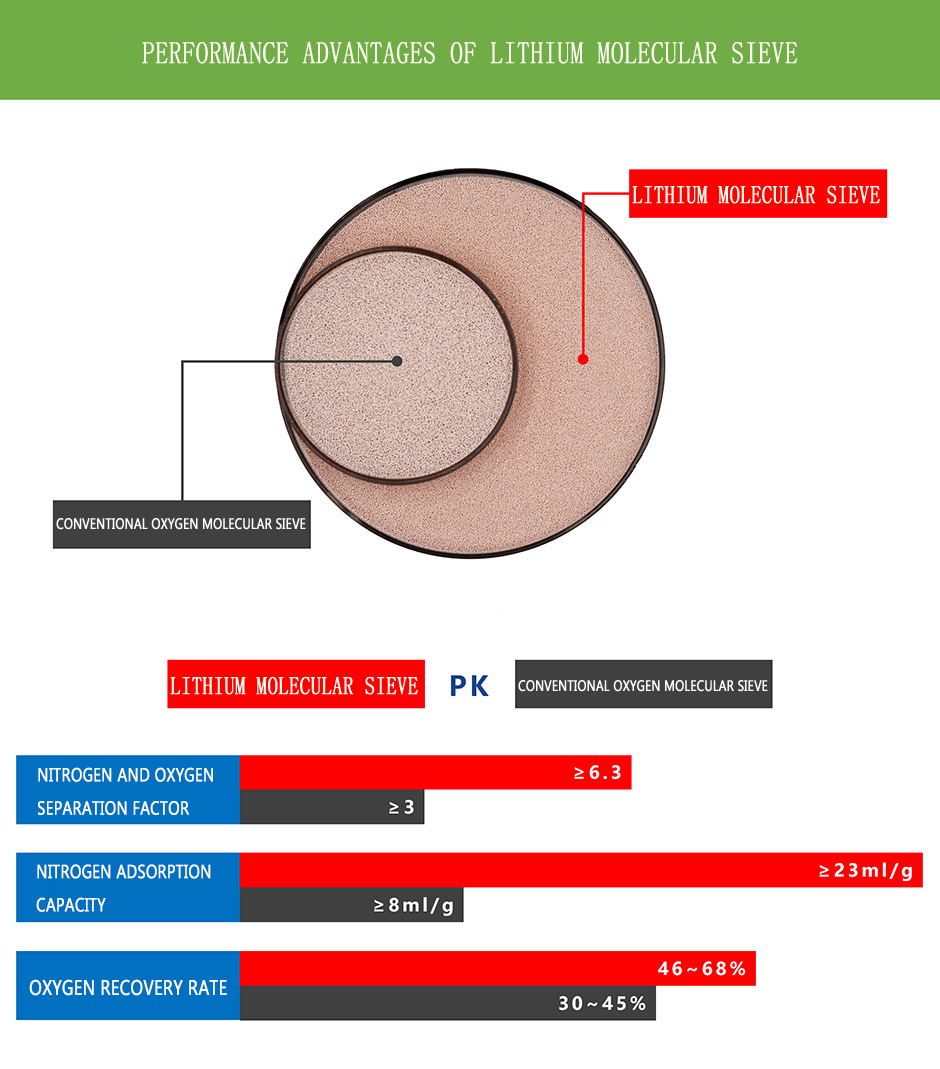

Model	13X HP Molecular Sieve		Lithium Based Molecular Sieve
Diameter	0.4-0.8MM	1.6-2.5MM	0.4-0.8MM	1.3-1.7MM
Bulk density	≥0.62g/mL	≥0.62g/mL	≥0.63g/mL	≥0.63g/mL
Crushing strength	/	≥25N/piece		≥15N/piece
Static N2 Adsorption (1bar, 25°C)	≥8mL/g	≥8mL/g	≥22.5mL/g	≥22.5mL/g
N2/O2 Separation (1bar, 25°C)	≥3	≥3	≥6.2	≥6.2
Attrition	≤0.3wt.%	≤0.3wt.%	≤1wt.%	≤1wt.%
Moisture Content	≤0.5wt.%	≤0.5wt.%	≤0.5wt.%	≤0.5wt.%
Application	Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min	Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour	Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min	Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour
Purity	93%±3%	93%±3%	93%±3%	93%±3%

Lithium Molecular Sieve Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
