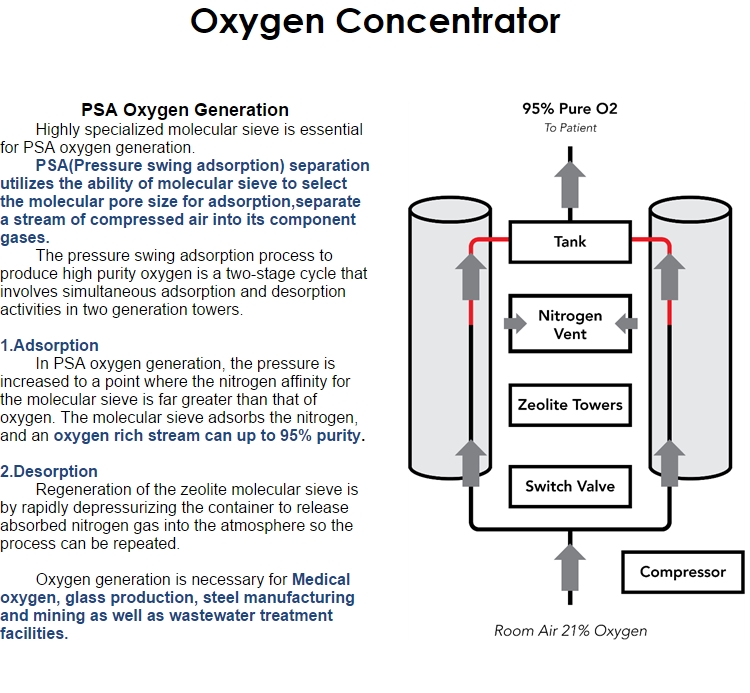

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.
PRODUCTS DESCRIPTION
FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.
Technical Parameter:
Model | 13X HP Molecular Sieve | Lithium Based Molecular Sieve | ||
Diameter | 0.4-0.8MM | 1.6-2.5MM | 0.4-0.8MM | 1.3-1.7MM |
Bulk density | ≥0.62g/mL | ≥0.62g/mL | ≥0.63g/mL | ≥0.63g/mL |
Crushing strength | / | ≥25N/piece | ≥15N/piece | |
Static N2 Adsorption (1bar, 25°C) | ≥8mL/g | ≥8mL/g | ≥22.5mL/g | ≥22.5mL/g |
N2/O2 Separation (1bar, 25°C) | ≥3 | ≥3 | ≥6.2 | ≥6.2 |
Attrition | ≤0.3wt.% | ≤0.3wt.% | ≤1wt.% | ≤1wt.% |
Moisture Content | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% | ≤0.5wt.% |
Application | Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min | Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour | Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min | Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour |
Purity | 93%±3% | 93%±3% | 93%±3% | 93%±3% |
lithium based high performance oxygen enrichment sieve bed mainly used in PSA and VPSA oxygen concentrator device. Lithium oxygen sieve bed has the characteristics of higher N2 adsorption capacity, high N2 with O2 selectivity and easy desorption etc. Its N2 adsorption capacity is 2-3 times larger than A type oxygen enrichment molecular sieve bed. At the same time, lithium oxygen molecualr sieve bed has good wear resistance and longer service life. It can significantly increases the economic benefits of oxygen production by lowering operating costs and energy consumption. Normally, JLOX-101 is designed for portable oxygen generator 1-5L/Min, lithium molsieve is designed for industrial oxygen plant, oxygen purity is up to 93%±3%.
More Details:
Synonym: Lithium molecular sieve, oxygen sieve bed, PSA and VPSA oxygen molecular sieve
CAS NO.: 1318-02-1
Application:
1. Lithium Sieve beds used for industrial oxygen concentrator in Waste water treatment field
2. Lithium Sieve beds used for oxygen concentrator in Aquaculture field for fish farming
3. Lithium Sieve bed for oxygen concentrator 1-5L/Min in medical oxygen market
4. Oxygen concentrator sieve bed material for ozone production filed
Stroage:
This oxygen concentrator sieve bed material is packed in aluminum bags and sealed in 25 kg air-tight drums. Lithium molecular sieve is very sensitive to moisture, please do not open before using. Storage temperature range: -10 ~ 45℃. Avoid direct sunlight!
Packing:
25kg/drum with inner aluminum foil bag, 125 kg/drum with inner aluminum foil bag
"Note：This is normal specification, in case of a particular application, application, please contact us by email at info@fznewmaterials.com for technical information."
