Lithium Medical Oxygen 95-98% Purity Lix molecular Sieve Zeolite Lithium Based Molecular Sieve

FEIZHOU oxygen enrichment molecular sieve series are special used in PSA/VPSA system. They have good N2/O2 selectivity, good crush strength and low loss on attrition, which is cost-effective for concentrating oxygen from air. They are widely used in industrial/Medical oxygen concentrator in ozone production filed, Aquaculture field for fish farming,Waste water treatment field, medical oxygen market. etc. Their concentating purity up to 93%+-3%, having good reputation in market.


PRODUCTS DESCRIPTION

Lithium molecular sieve

Lithium molecular sieve is a synthetic zeolite of lithium-type crystal structure, large Nitrogen adsorption capacity, high

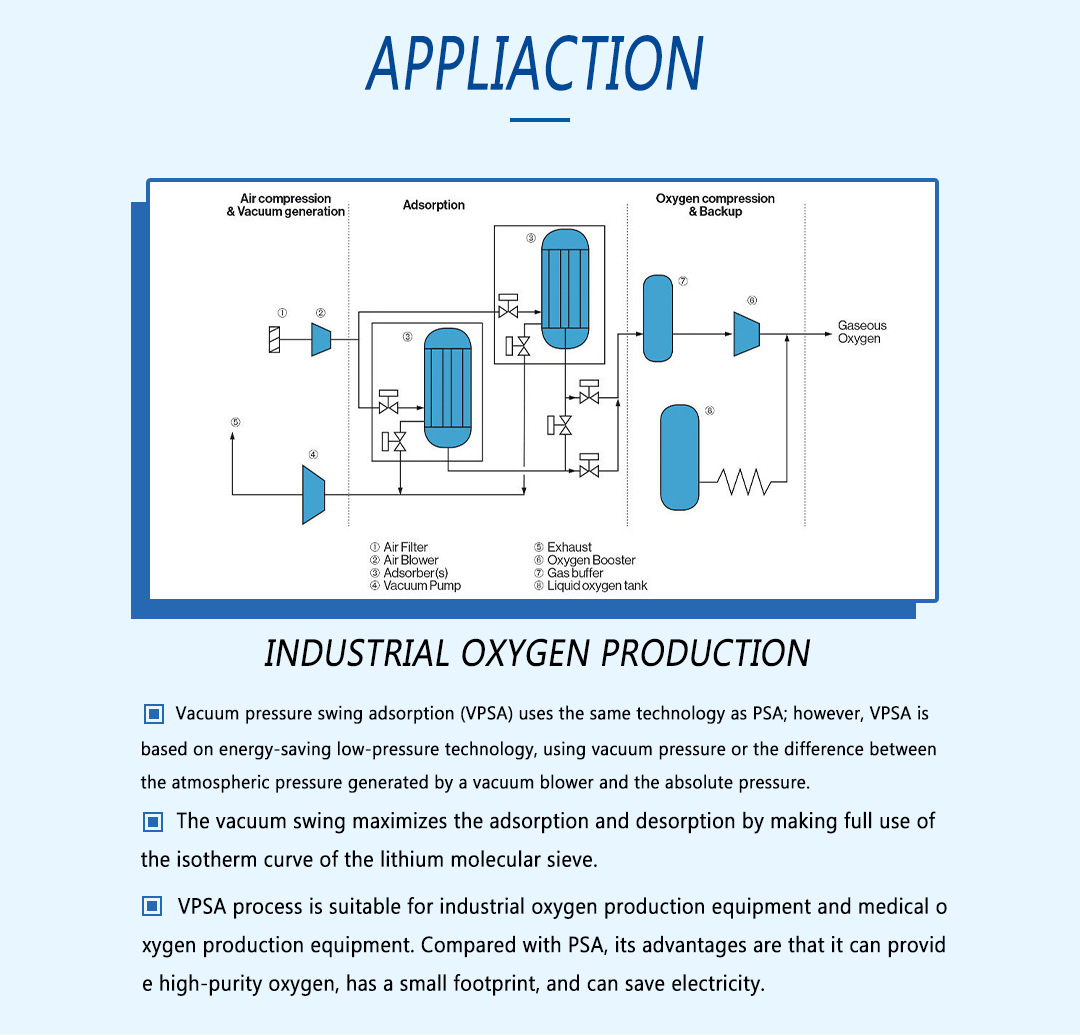

efficiency of oxygen/nitrogen separation. Below chart indicates lithium based molecular sieve((The temperature is 25℃)) It shows high N2/O2 separation under a very low pressure, which lowers the consumption of producing oxygen.The advantage of on the equilibrium adsorption capacity, It applies to various VPSA device for producing oxygen.


Technical Parameter:

Model

13X HP Molecular Sieve

Lithium Based Molecular Sieve

Diameter

0.4-0.8MM

1.6-2.5MM

0.4-0.8MM

1.3-1.7MM

Bulk density

≥0.62g/mL

≥0.62g/mL

≥0.63g/mL

≥0.63g/mL

Crushing strength

/

≥25N/piece


≥15N/piece

Static N2 Adsorption (1bar, 25°C)

≥8mL/g

≥8mL/g

 ≥22.5mL/g

 ≥22.5mL/g

N2/O2 Separation

(1bar, 25°C)

≥3

≥3

 ≥6.2

 ≥6.2

Attrition

≤0.3wt.%

≤0.3wt.%

 ≤1wt.%

≤1wt.%

Moisture Content

≤0.5wt.%

≤0.5wt.%

 ≤0.5wt.%

≤0.5wt.%

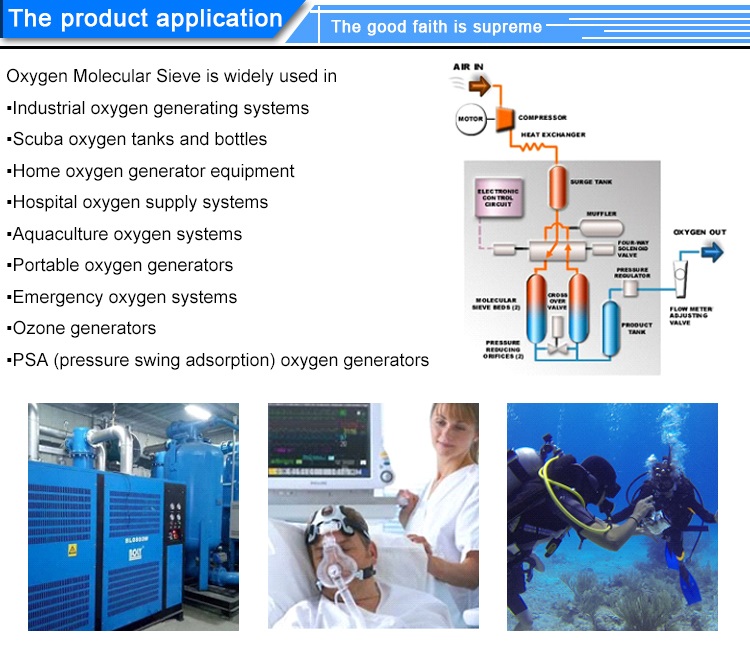

Application

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: <300Nm3/hour

Medical care oxygen generator, small, portable oxygen concentrators Capacity: 1L/min-10L/min

Industrial and Medical Oxygen Generator/Plant, hospital oxygen concentrators of PSA system Capacity: 300-10000Nm3/hour

Purity

93%±3%

93%±3%

 93%±3%

93%±3%

 Medical Oxygen 95-98% Purity Lix molecular Sieve Zeolite Lithium Based Molecular SieveMedical Oxygen 95-98% Purity Lix molecular Sieve Zeolite Lithium Based Molecular SieveMedical Oxygen 95-98% Purity Lix molecular Sieve Zeolite Lithium Based Molecular Sieve

Hand & Storage Recommendation:

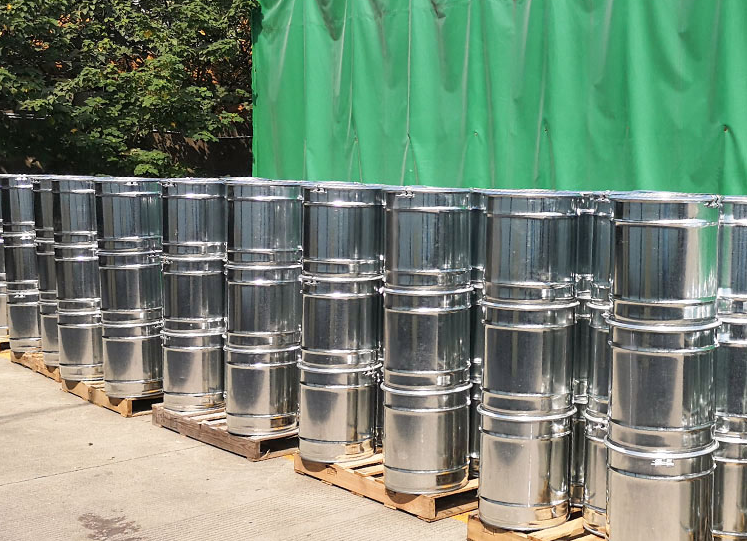

It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.

Medical Oxygen 95-98% Purity Lix molecular Sieve Zeolite Lithium Based Molecular Sieve


"Note:This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
