Zeolite 5A Molecular Sieve Hydrogen Purification Use To Separation Of Normal Paraffin And Isoparaffin

Model	5A Molecular Sieve
Nominal pore diameter	5 angstroms

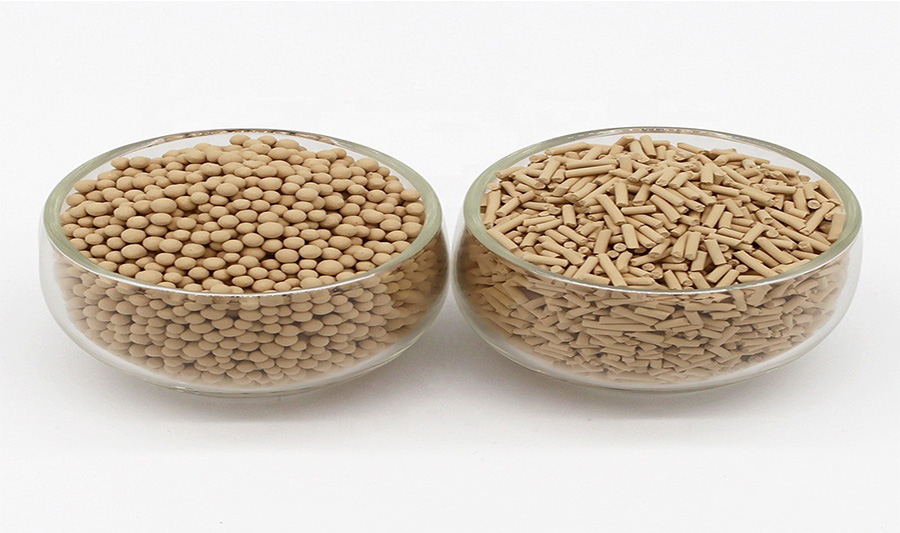

Shape	Sphere		Pellet

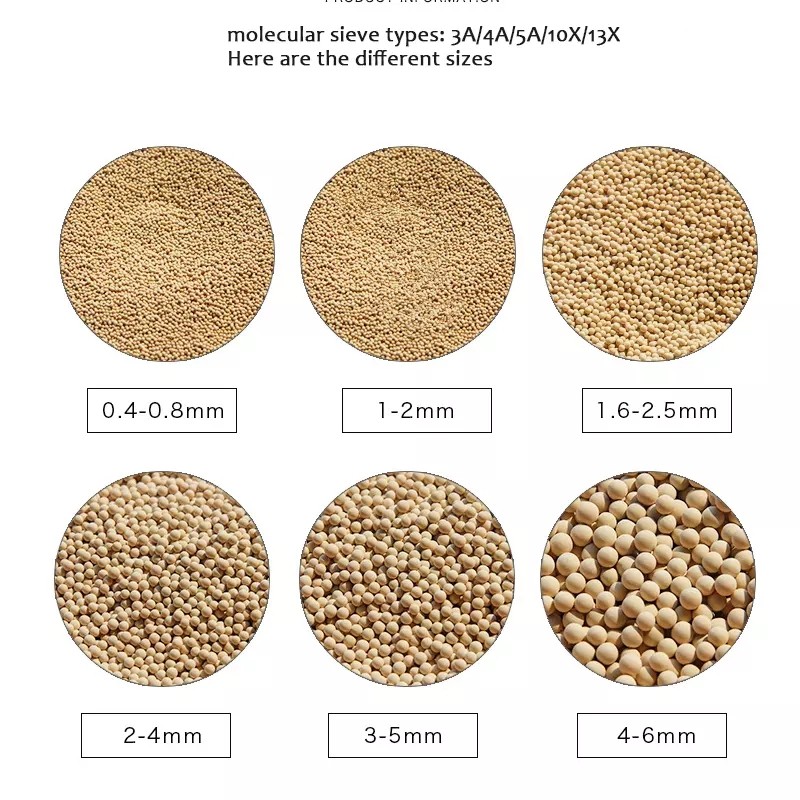

Diameter	1.7-2.5 (mm)	3.0-5.0 (mm)	1.6 (mm)	3.2 (mm)
Diameter	8*12 (mesh)	4*8 (mesh)	1/16 (inch)	1/8 (inch)
Bulk density (g/ml)	≥0.66	≥0.66	≥0.64	≥0.64
Crushing strength (N/PC)	≥30.0	≥70.0	≥30.0	≥50.0
Size ratio up to grade (%)	≥96.0	≥96.0	≥96.0	≥94.0
Static H2O adsorption (%)	≥21.0	≥21.0	≥20.5	≥20.5
Static Hexane adsorption (%)	≥12.0	≥12.0	≥12.0	≥12.0
H2O content (%)	≤1.5	≤1.5	≤1.5	≤1.5
Wear ratio (%)	≤0.20	≤0.20	≤0.40	≤0.40

Inquire Now Next Product

PRODUCTS DESCRIPTION

Product description:

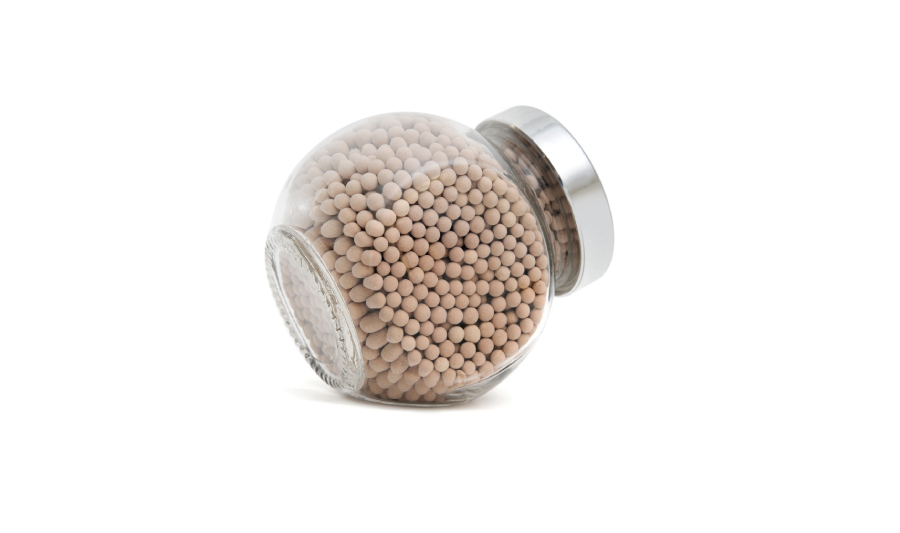

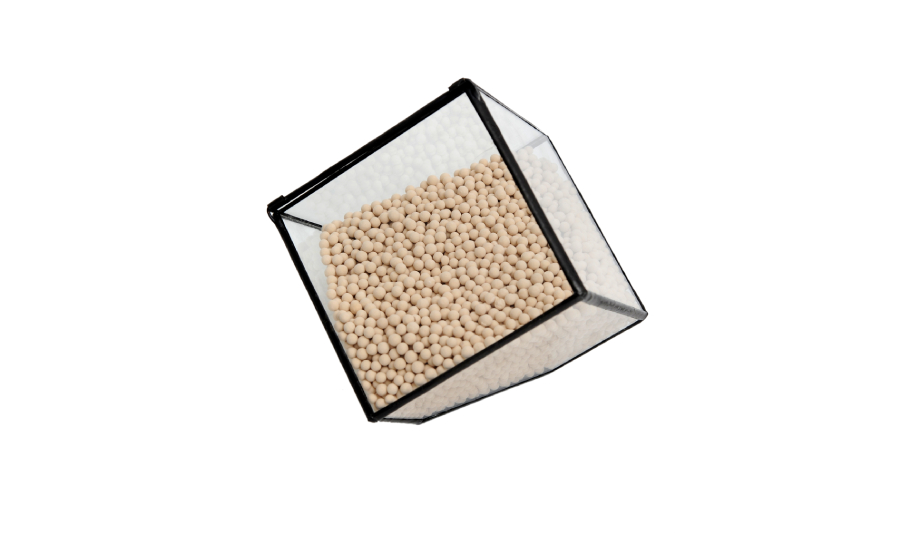

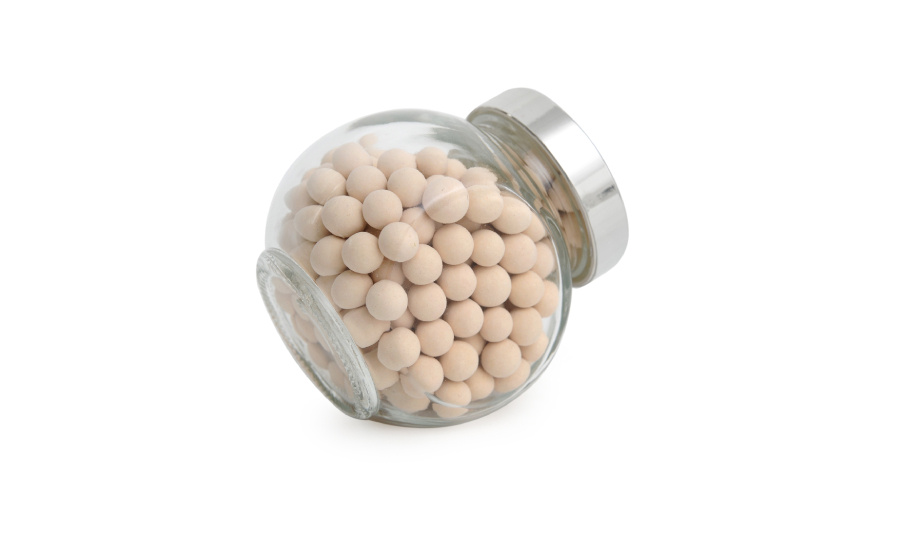

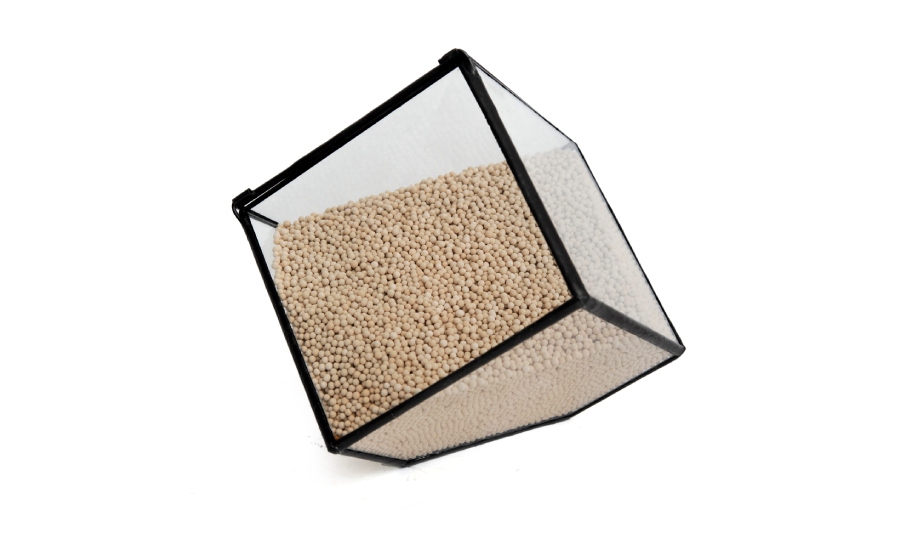

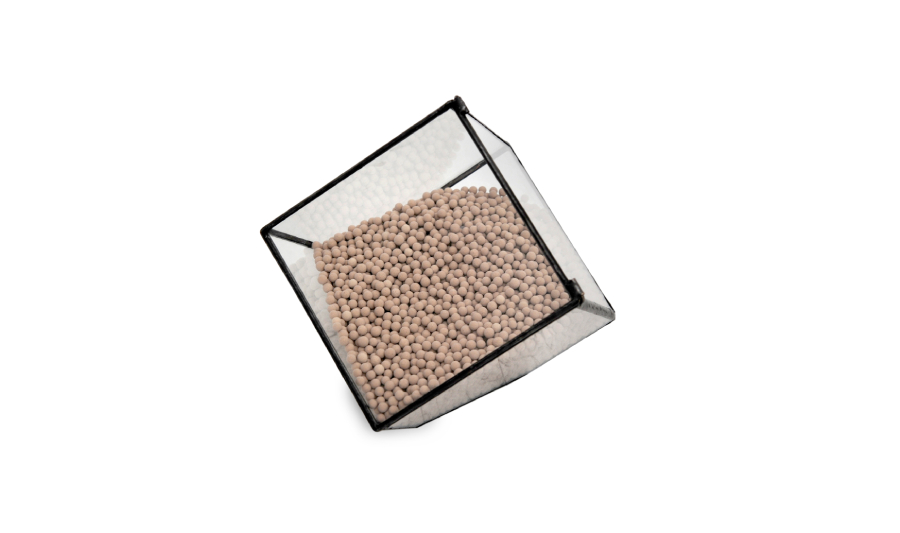

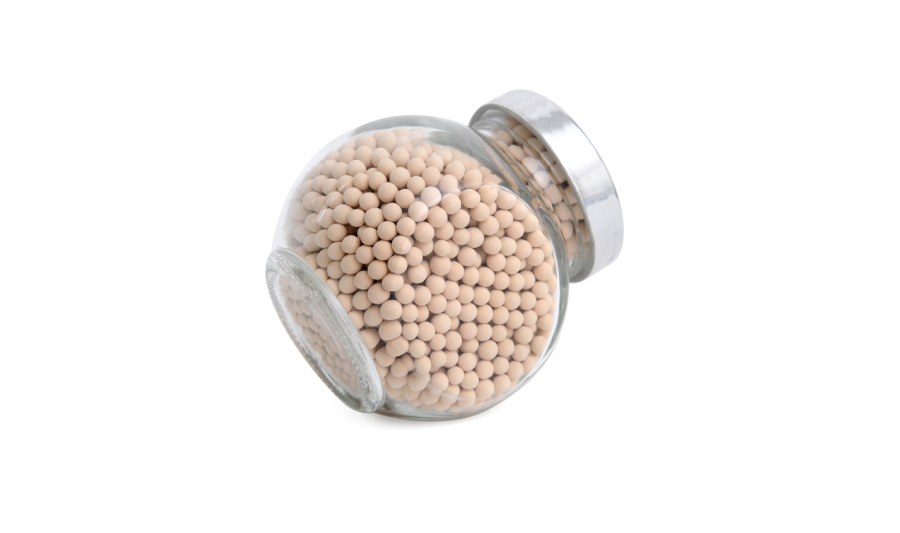

Standard Molecular Sieve Hydrogen Purification is made from zeolite powder 5A (>70%) and binder. Binder is clay, which has little adsorption capacity. Binderless 5A transforms clay binder to zeolite 5A. That means zeolite 5A composition in binderless molecular sieve 5A is 100%, that greatly increased its adsorption capacity. Hydrogen purification molecular sieve 5A is normally used in PSA hydrogen purification. Hydrogen purification 5A has the advantages of a large adsorption capacity, fast adsorption&desorption rate and high mechanical strength. Hydrogen purification molecular sieve 5A greatly increased the CO, N2 and CH4 adsorption capacity than standard molecular sieve 5A, which makes it an excellent adsorbents for PSA hydrogen purification process. Hydrogen purification molecular Sieve 5A have the shape of beads with diameter 1.6-2.5 mm (8x12 mesh).

Zeolite 5A Molecular Sieve Hydrogen Purification Use To Separation Of Normal Paraffin And Isoparaffin

More Details:

1. Synonym: PSA 5A

2. Typical Chemical Formula: Ca4,5 [(Al02)12(SiO2)12].nH2O

3. CAS NO.: 1318-02-1

4. Silica-alumina ratio: SiO2/ Al2O3≈2

Application:

1. Hyrogen purification molecular sieve 5A is used for hydrogen Purification by PSA method

2. Hyrogen purification molecular sieve 5A can also be used in PSA oxygen concentrator

Zeolite 5A Molecular Sieve Hydrogen Purification Use To Separation Of Normal Paraffin And Isoparaffin

Stroage:

Keep hydrogen purification molecular sieve 5A in an air tight container until ready for use to avoid unintended moisture adsorption.

Regeneration & Activation:

Zeolite Hydrogen Purification can be regenerated or activated either thermal regeneration method(Thermal Swing Adsorption, TSA); To remove moisture from a Hyrogen purification molecular sieve Zeolite 5A, a temperature of 200-230℃ (390-570°F)is required. Hyrogen purification molecular sieve 5A can also be regnerated by lowering the pressure in the case of pressure swing processes (PSA). A properly regenerated molecular sieve can give moisture dew points below -100℃. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.

Packing:

"Note：This is normal specification, in case of a particular application, please contact us by email at info@fznewmaterials.com for technical information."
