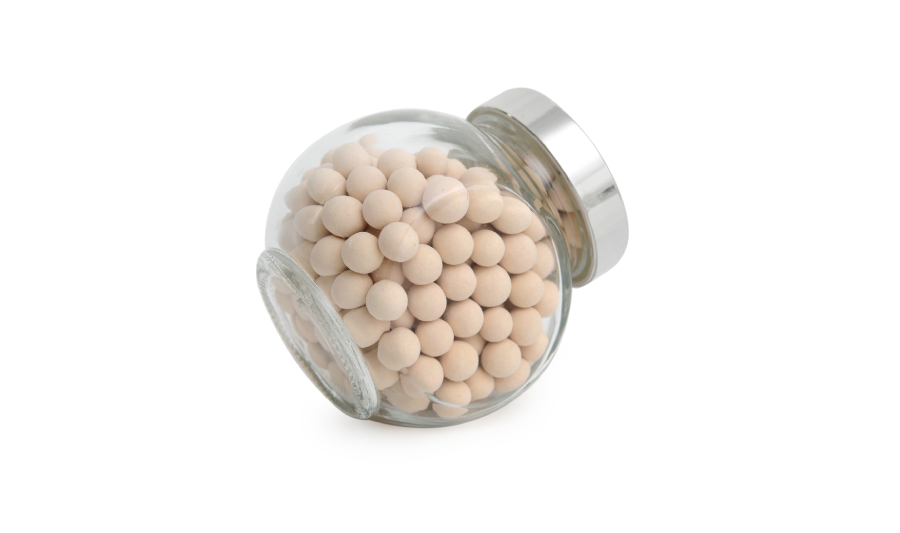

Zeolite Molecular Sieve 5A For PSA Hydrogen Generator & Hydrogen Purification

Model	5A Molecular Sieve
Nominal pore diameter	5 angstroms
Shape	Sphere		Pellet
Diameter	1.7-2.5 (mm)	3.0-5.0 (mm)	1.6 (mm)	3.2 (mm)
	8*12 (mesh)	4*8 (mesh)	1/16 (inch)	1/8 (inch)
Bulk density (g/ml)	≥0.66	≥0.66	≥0.64	≥0.64
Crushing strength (N/PC)	≥30.0	≥70.0	≥30.0	≥50.0
Size ratio up to grade (%)	≥96.0	≥96.0	≥96.0	≥94.0
Static H2O adsorption (%)	≥21.0	≥21.0	≥20.5	≥20.5
Static Hexane adsorption (%)	≥12.0	≥12.0	≥12.0	≥12.0
H2O content (%)	≤1.5	≤1.5	≤1.5	≤1.5
Wear ratio (%)	≤0.20	≤0.20	≤0.40	≤0.40

Inquire Now Next Product

PRODUCTS DESCRIPTION

FEIZHOU Molecular sieves 5A in PSA hydrogen purification with high crush strength

Molecular Sieve 5A For PSA Hydrogen Generatorhas an effective pore opening of 5 angstroms(0.5nm).

It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.

Molecular Sieve 5A For PSA Hydrogen Purification has high select adsorption and fast adsorption speed.

Technical Parameter:

Chemical Molecular Formula: 0.7CaO·0.3Na2O·Al2O3·2SiO2·4.5H2O. (SiO2 : Al2O3 ≈2).

Model	5A Molecular Sieve
Nominal pore diameter	5 angstroms
Shape	Sphere		Pellet
Diameter	1.7-2.5 (mm)	3.0-5.0 (mm)	1.6 (mm)	3.2 (mm)
Diameter	8*12 (mesh)	4*8 (mesh)	1/16 (inch)	1/8 (inch)
Bulk density (g/ml)	≥0.66	≥0.66	≥0.64	≥0.64
Crushing strength (N/PC)	≥30.0	≥70.0	≥30.0	≥50.0
Size ratio up to grade (%)	≥96.0	≥96.0	≥96.0	≥94.0
Static H2O adsorption (%)	≥21.0	≥21.0	≥20.5	≥20.5
Static Hexane adsorption (%)	≥12.0	≥12.0	≥12.0	≥12.0
H2O content (%)	≤1.5	≤1.5	≤1.5	≤1.5
Wear ratio (%)	≤0.20	≤0.20	≤0.40	≤0.40

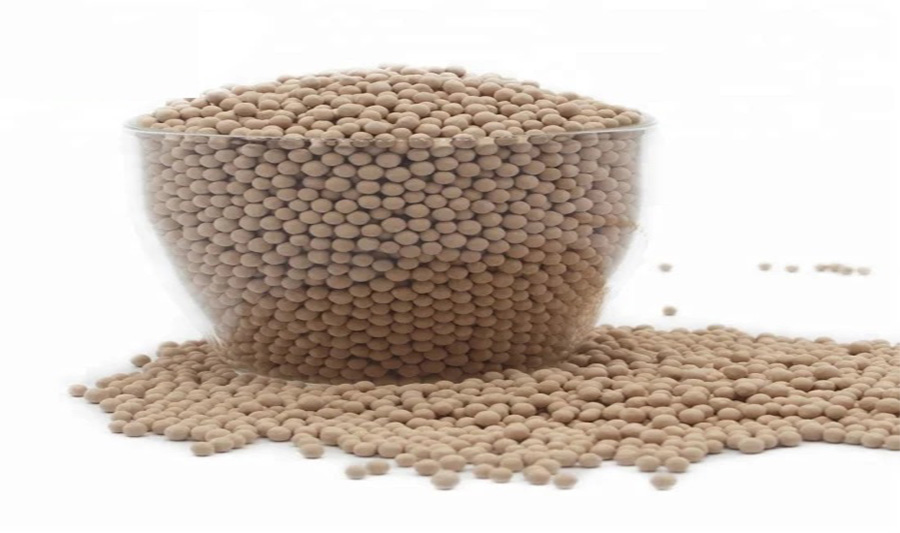

Zeolite Molecular Sieve 5A For PSA Hydrogen Generator

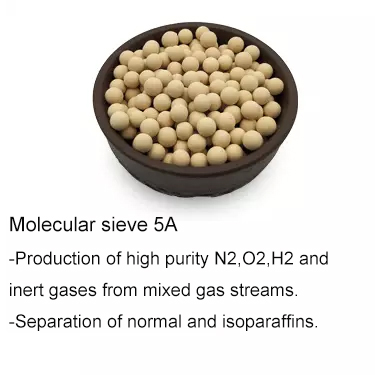

Typical Application:

a) The various sizes of O2, H2, CO2 and other gas PSA purification devices.

b) Separation of normal paraffin and isoparaffin.

c) The Zeolite 5A For PSA Hydrogen Generator purification of air, dehydration and carbon dioxide removal.

d) The drying of natural gas, dehydration and desulphurization.

Warranty:

By National Standard GB/T 13550-2015.

Free consultation during the warranty period.

**The above information is for customers’ reference only. Performance characteristics vary depending on specific application. please contact us by email at info@fznewmaterials.com if detailed application method for materials needed.
