Molecular Sieve 3A is one kind of alkali metal alumino-silicate. Sometimes, it is also called 3A zeolite molecular sieve. The aperture of this molecular sieve is 3A. Therefore, It does not adsorb the objects whose molecular diameters are larger than 3Å. 3A molecular sieve's formula is 2/3K2O•1/3Na2O•Al2O3• 2 SiO2 • 9/2 H2O. 3A molecular sieve desiccant is the necessary desiccant in petroleum, chemical industry.
PRODUCTS DESCRIPTION
Molecular Sieve 3A is one kind of alkali metal alumino-silicate. Sometimes, it is also called 3A zeolite molecular sieve. The aperture of this molecular sieve is 3A. Therefore, It does not adsorb the objects whose molecular diameters are larger than 3Å. 3A molecular sieve's formula is 2/3K2O•1/3Na2O•Al2O3• 2 SiO2 • 9/2 H2O. 3A molecular sieve desiccant is the necessary desiccant in petroleum, chemical industry.
Model | 3A Molecular Sieve | |||
Nominal pore diameter | 3 angstroms | |||

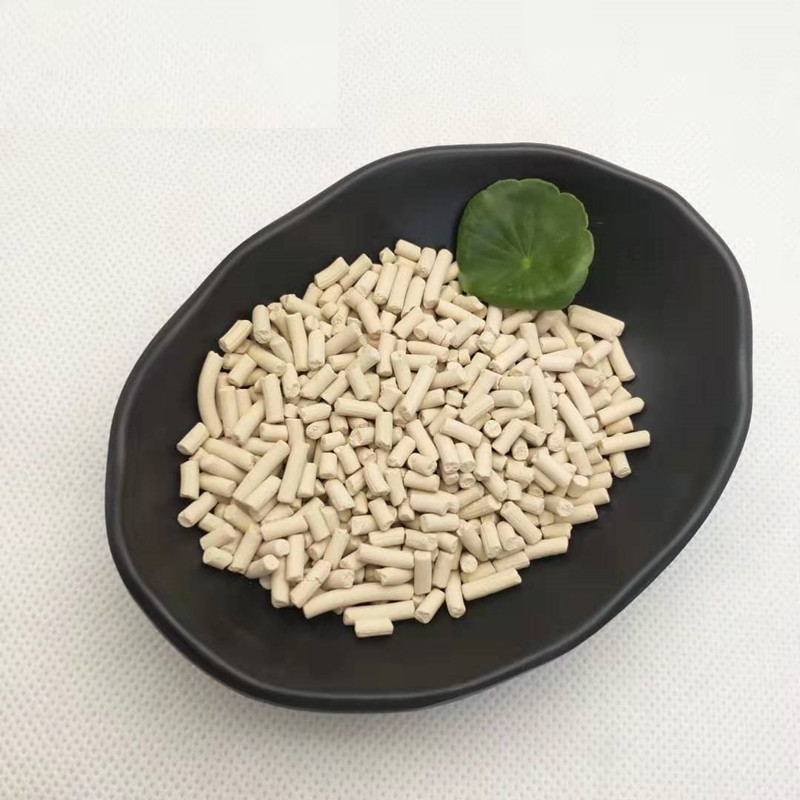

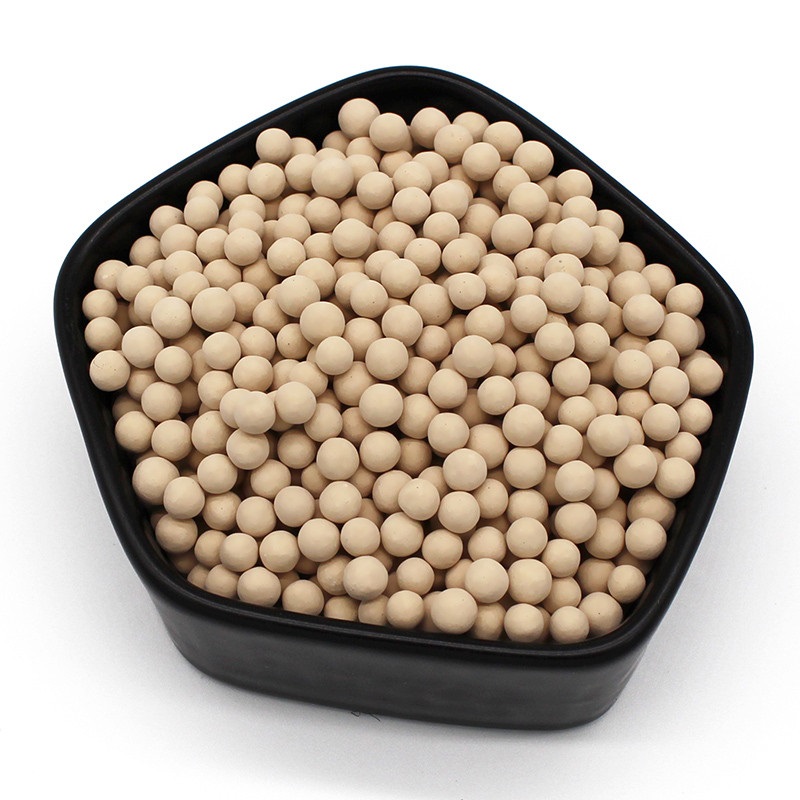

Shape | Sphere | Pellet | ||
Diameter | 1.7-2.5(mm) | 3.0-5.0(mm) | 1.6(mm) | 3.2(mm) |
Bulk density (g/ml) | ≥0.7 | ≥0.7 | ≥0.68 | ≥0.68 |
Crushing strength (N/PC) | ≥55.0 | ≥85.0 | ≥30.0 | ≥50.0 |
Size ratio up to grade (%) | ≥98.0 | ≥98.0 | ≥96.0 | ≥96.0 |
Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥21.0 | ≥21.0 |
H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Wear ratio (%) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |

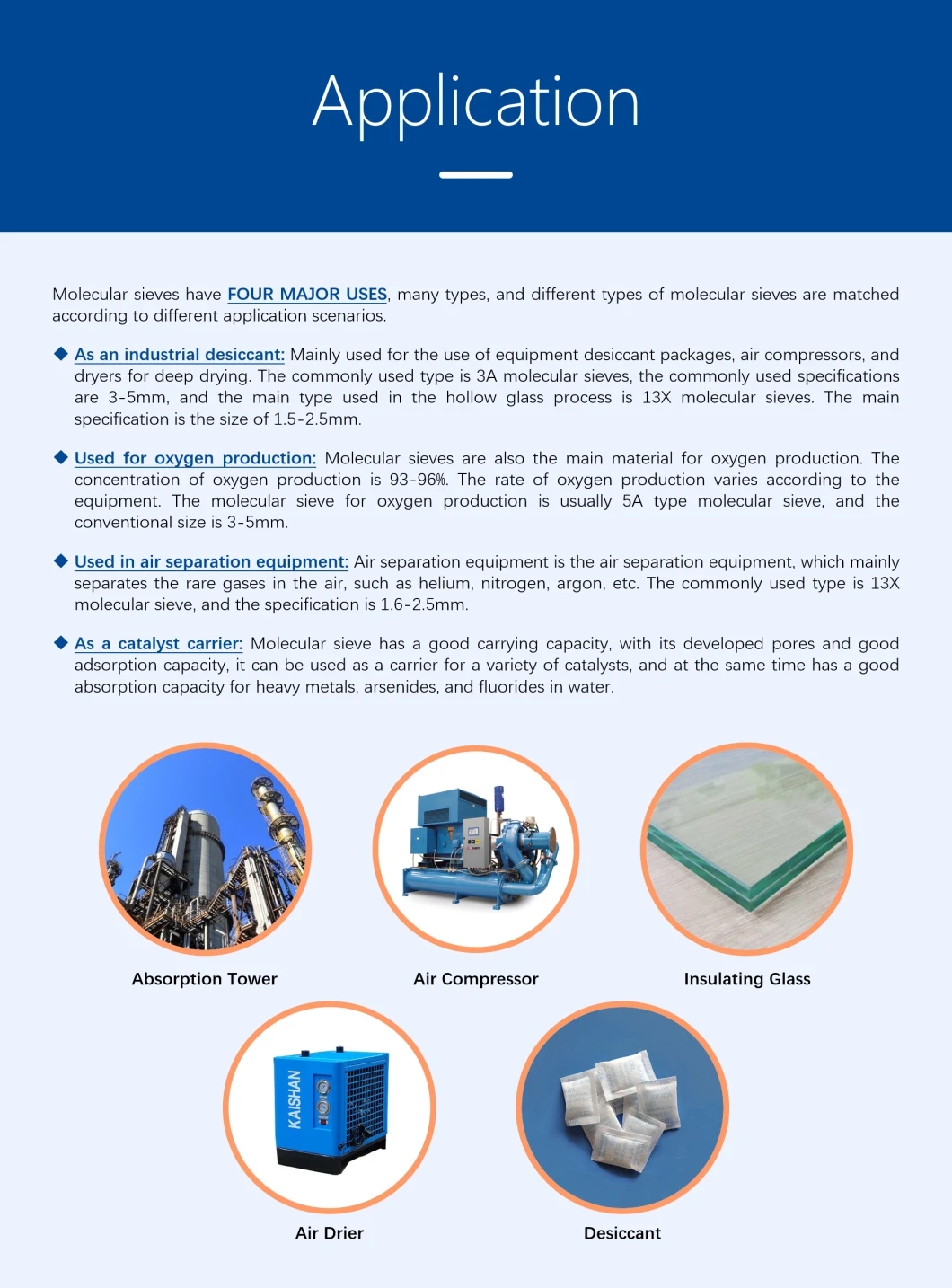

Application
1) Drying of unsaturated hydrocarbons(e.g.. ethylene,propylene,butadien)
2) Cracked Gas Drying
3) Drying of natural gas,if COS minimization is essential,or a minimum co-adsorption of hydrocarbons is required.
4) Drying of highly polar compounds,such as methanol and ethanol
5) Drying of liquid alcohol
6) Static,(non-regenerative) dehydration of insulating glass units,whether air filled or gas-filled.
Warranty: By National Standard GB/T 10504-2008.
Free consultation during the warranty period.
Attention: Store in a cool & dry place.
Normal Package: 25KG or 30KG cartons with vacuum bags inside.
"Note：This is normal specification, in case of a particular application, application, please contact us by email at info@fznewmaterials.com for technical information."
